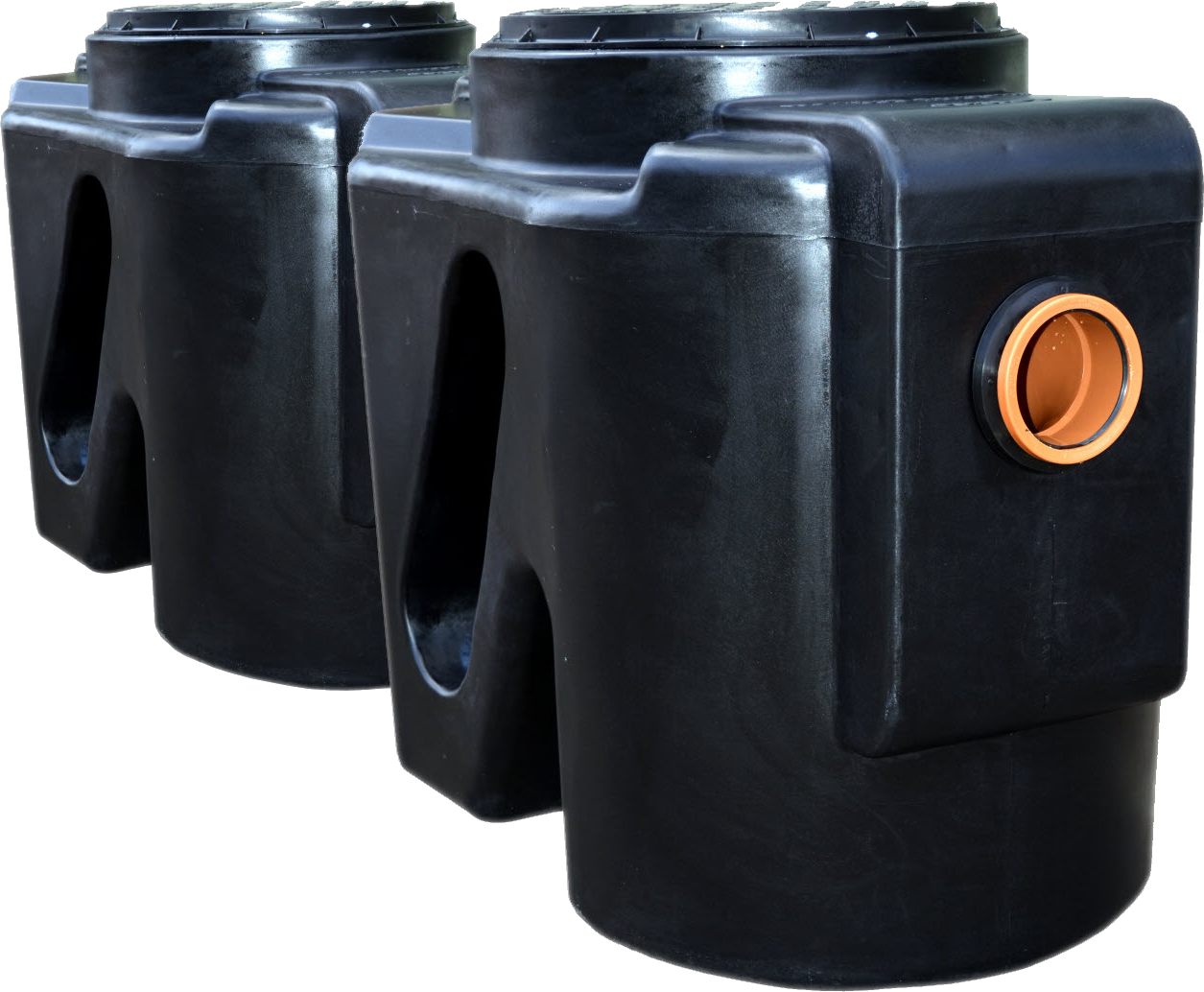

Rhino™ Grease Trap
Introducing the
Rhino Grease Trap Range
The Jumbo range of Grease Traps are designed primarily for the separation and retention of FOG’s in kitchens and smaller catering establishments. As such they require regular inspection and maintenance including the removal of accumulated controlled waste for environmental disposal by registered waste carriers as per Environment Agency guidelines.
Why Use Rhino Grease Traps?
High quality design and Manufacture and the incredible SuDS Enviro Support
One Piece
Lightweight single piece rotational moulded HDPE construction
Effective
Separates and retains Fats, Oils and Greases (FOG’s)
Baffle and Step
Unique hollow baffle and step design assists separation and
retention
Clean Drains
Promotes clean and free running drains
Regular Connection
Conventional connections to Ø110 and Ø160 mm pipework
Access Cover
Includes access/inspection cover as standard (pedestrian rated)
Available Configuration and Specification
| Model | Covers per day | Sludge Capacity (Ltrs) | Length ‘A’ (mm) | Width ‘B’ (mm) | Height ‘C’ (mm) | Inlet Invert (mm) | Outlet Invert (mm) | Pipe Coonections (mm) | Inspection Cover |
| Rhino GT Micro | 150 | 100 | 830 | 640 | 630 | 250 | 280 | 100/60 | Ø450mm |
| Rhino GT Mini | 300 | 250 | 1700 | 640 | 630 | 250 | 280 | 100/60 | 2 x Ø450 |
| Rhino GT Midi | 300 | 180 | 1100 | 720 | 860 | 310 | 345 | 100/60 | Ø450mm |
| Rhino GT Jumbo | 600 | 400 | 2240 | 720 | 860 | 310 | 345 | 100/60 | 2 x Ø450 |
